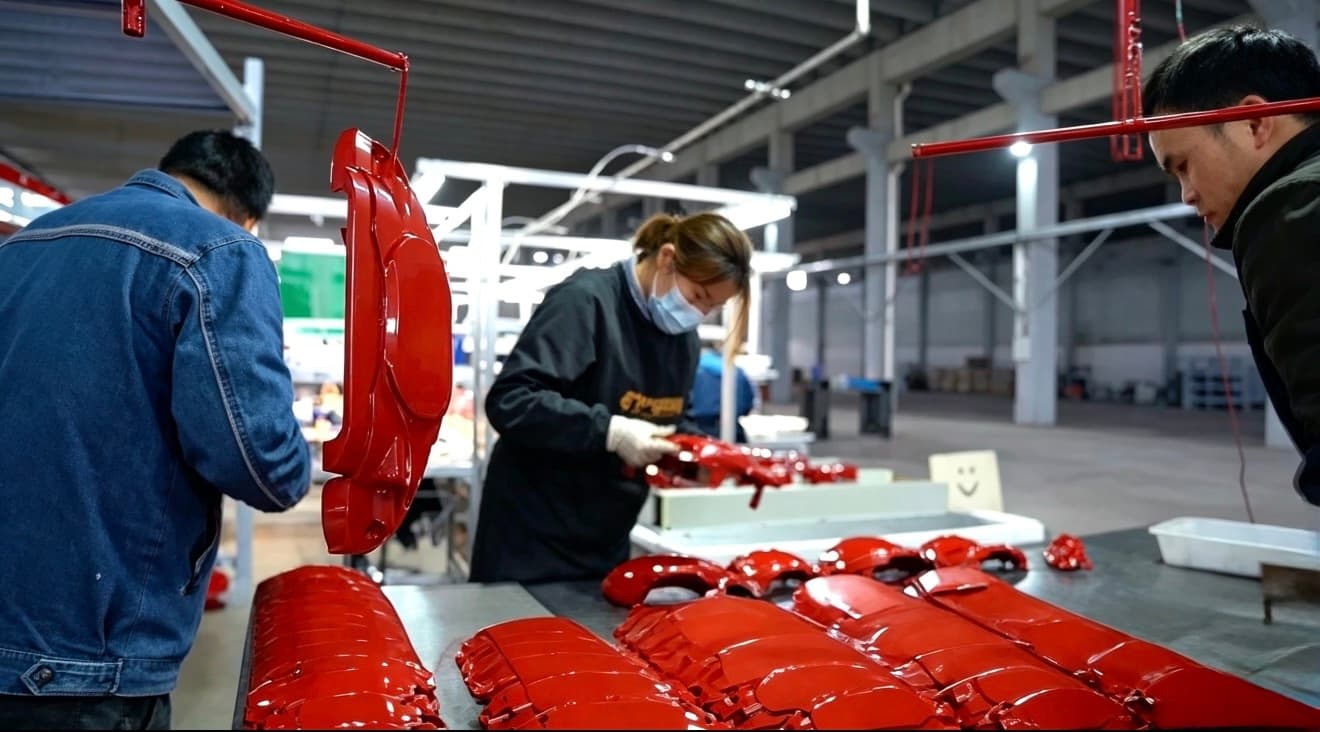

Finished decorative brake caliper covers handled at an HSX project worktable

Manufacturing evidence

Projects &
Real Parts

A visual journey through one complete HSX project, followed by selected real parts from other OEM projects.

View the featured project

Featured project

Decorative Brake Caliper Cover Project

Decorative appearance product, not a functional braking component.

HSX supply scope

Design review through finished product and packing, including assembly for this decorative cover project.

Complete project processDesign → production → finished packing
  1. 01–03Design & Casting Preparation
  2. 04–06Casting to Surface Finish
  3. 07–09Assembly, QC & Packing
01–03

Design & Casting Preparation

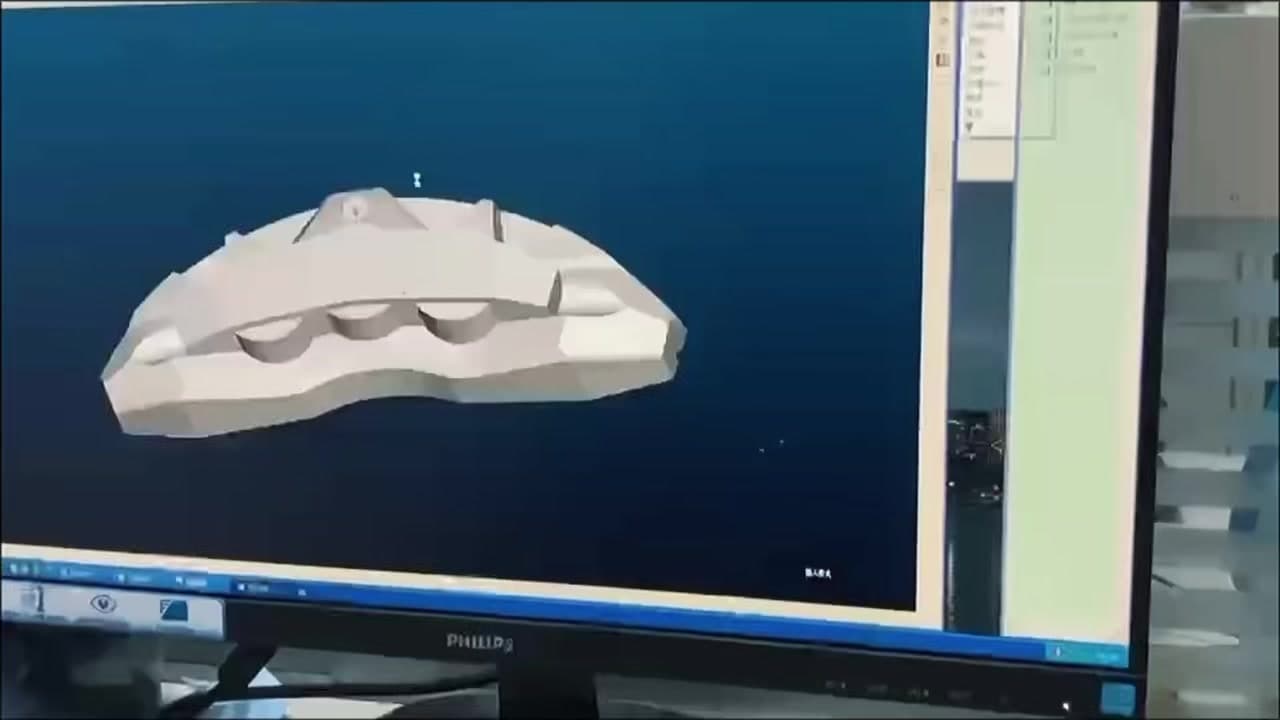

Digital model shown during the decorative brake caliper cover project
DesignThe project begins with a digital product model.

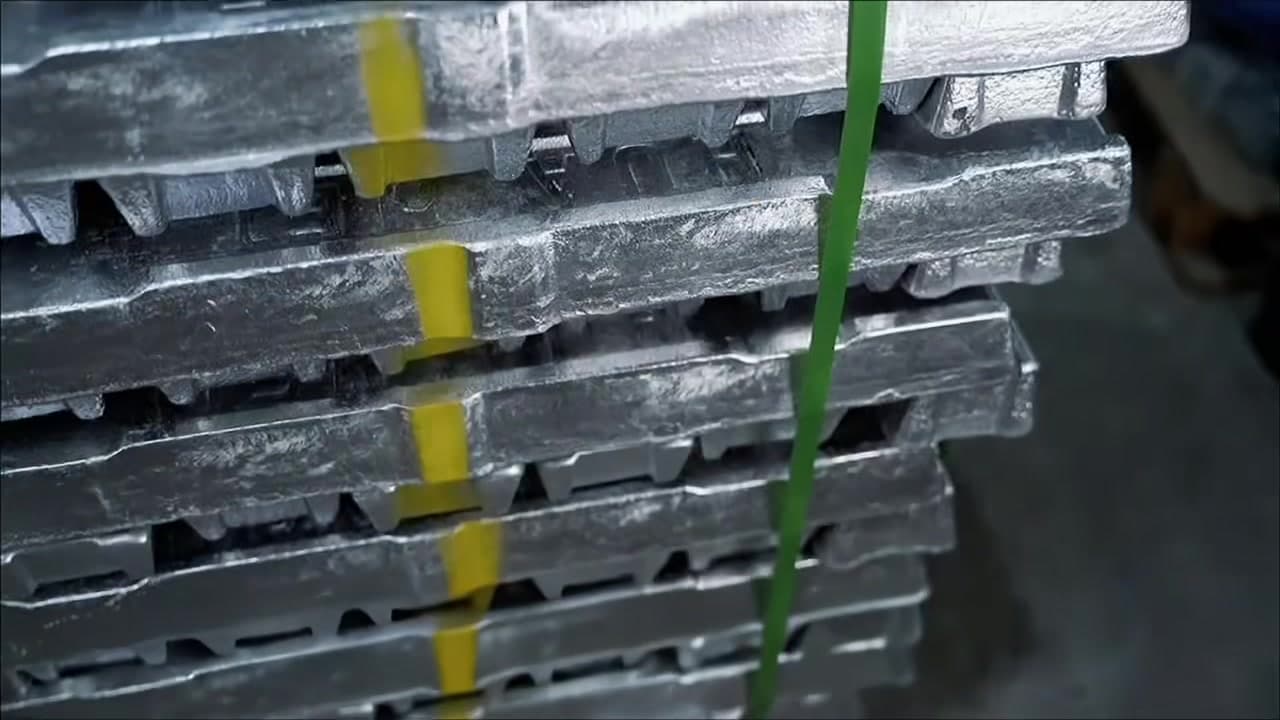

Raw material prepared for the decorative brake caliper cover project
Raw MaterialProduction input material prepared for the next project stage.

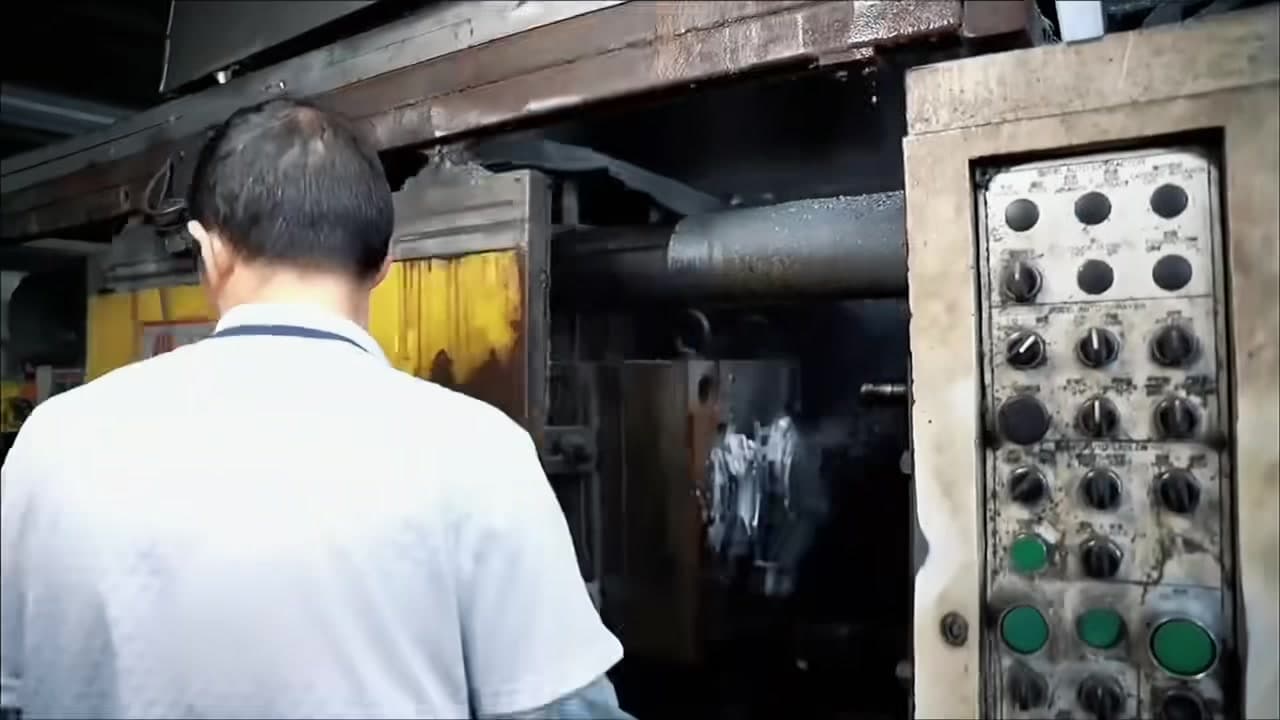

Die casting equipment operating during the decorative brake caliper cover project
03

Mold & Die Casting

Casting production begins at the die-casting equipment.

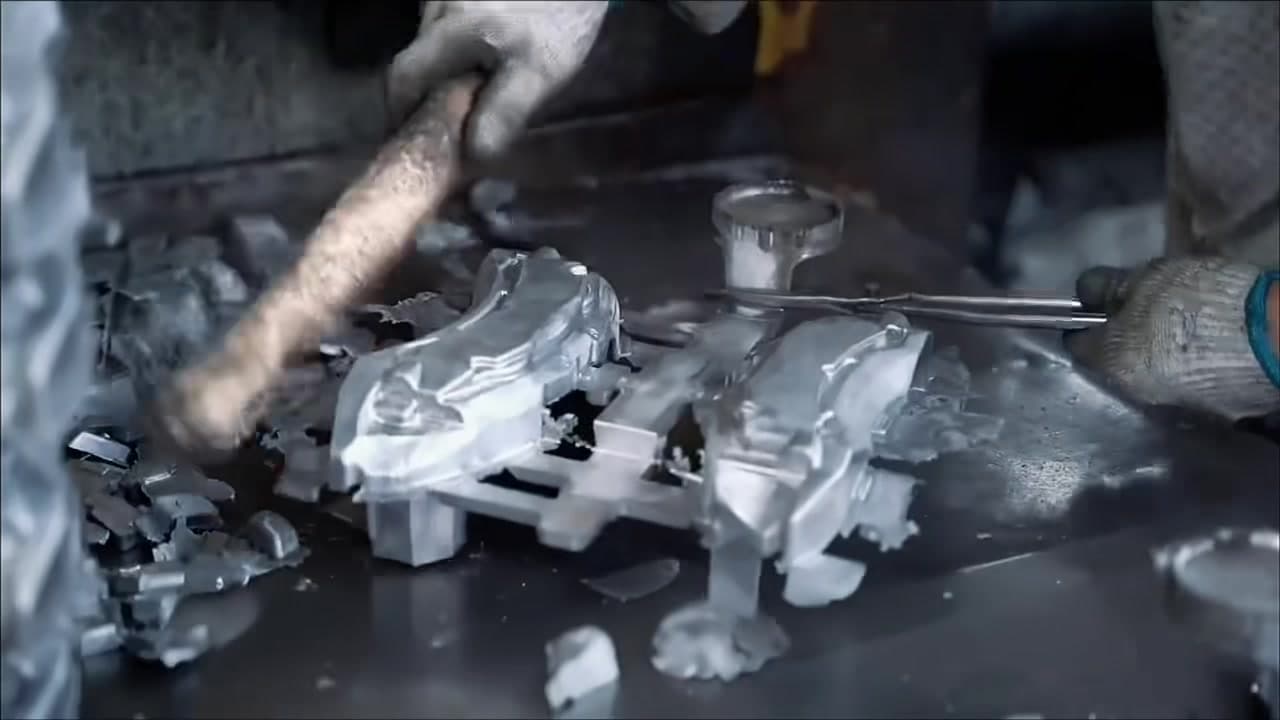

Gate removal on decorative brake caliper cover castings
04 / Gate RemovalCast components are separated from the visible runner and gate material.

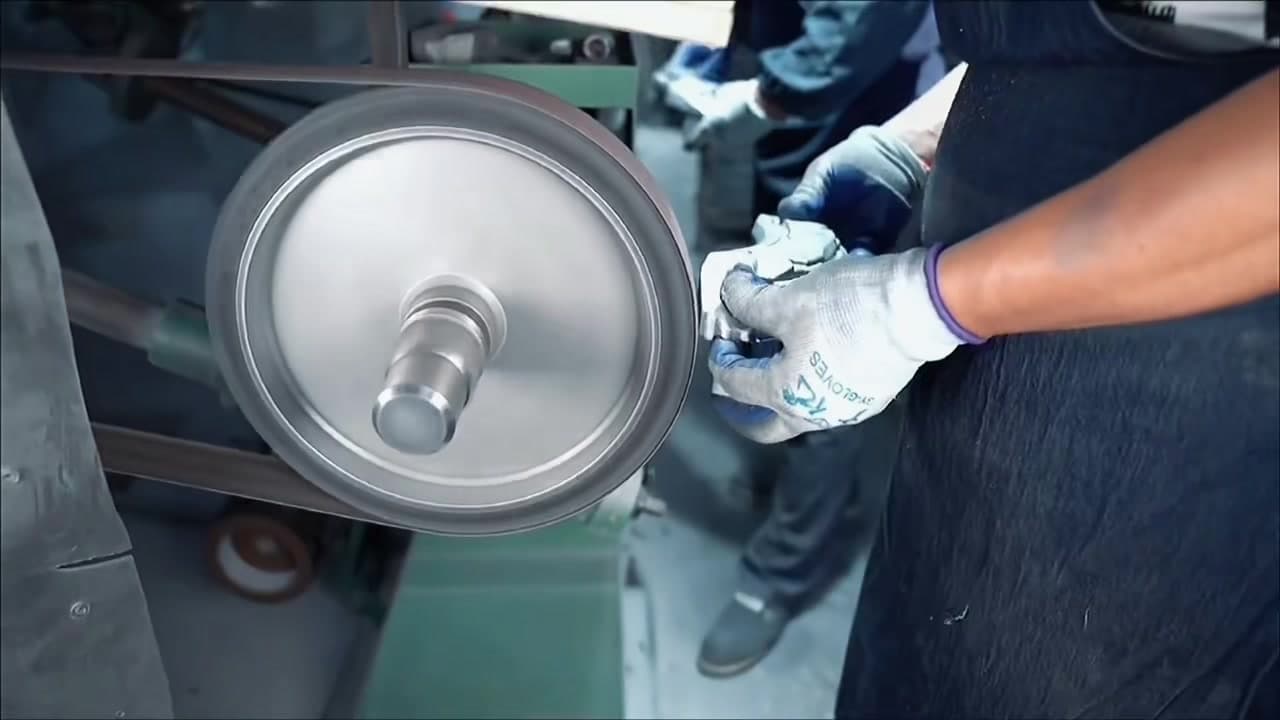

Polishing a decorative brake caliper cover casting
05 / PolishingThe visible casting surface is prepared before coating.
06

Surface Coating

Coating follows surface preparation.

The decorative covers receive their visible finish before project-specific assembly and quality inspection.

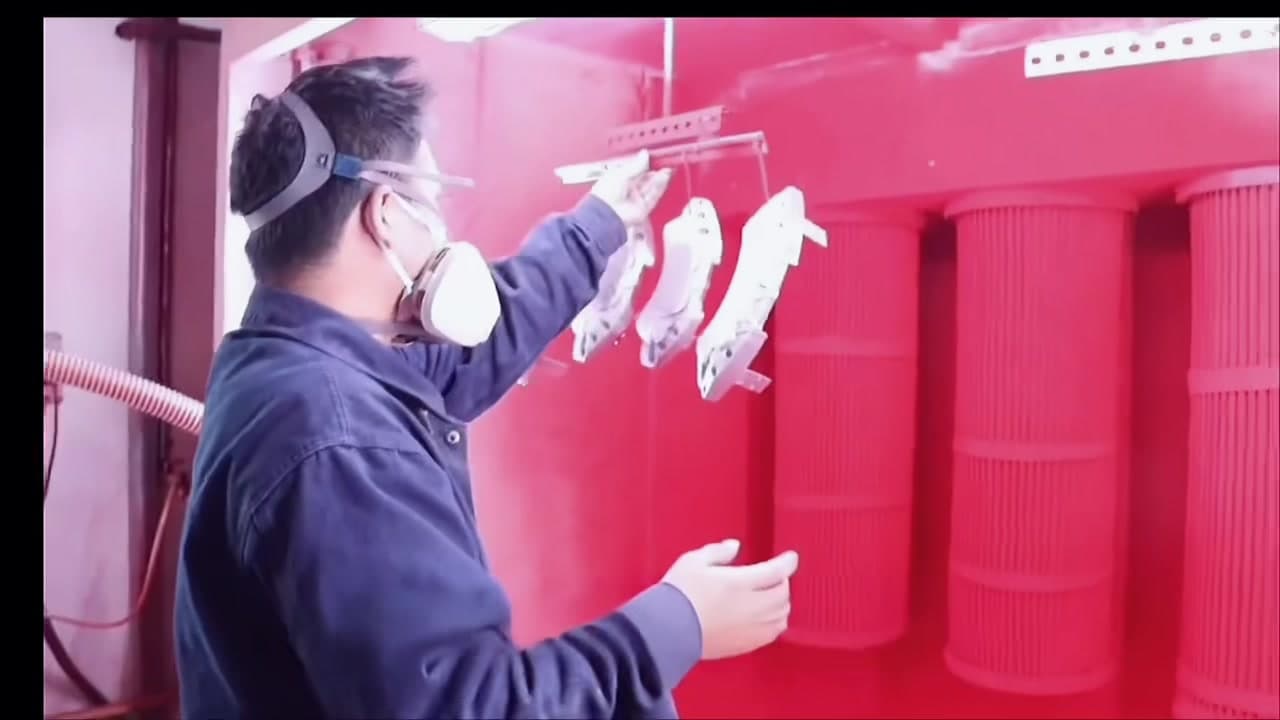

Coating stage for decorative brake caliper cover components

07–08 / Project-specific Assembly & QC

Project-specific assembly followed by quality inspection.

Assembly is included in this decorative cover project’s supply scope. Finished red covers are handled and checked at the worktable before packing.

Workers handling and checking finished red decorative brake caliper covers
09

Finished Product & Packing

Finished covers prepared for packing.

Finished decorative covers are arranged in project packaging with accompanying components.

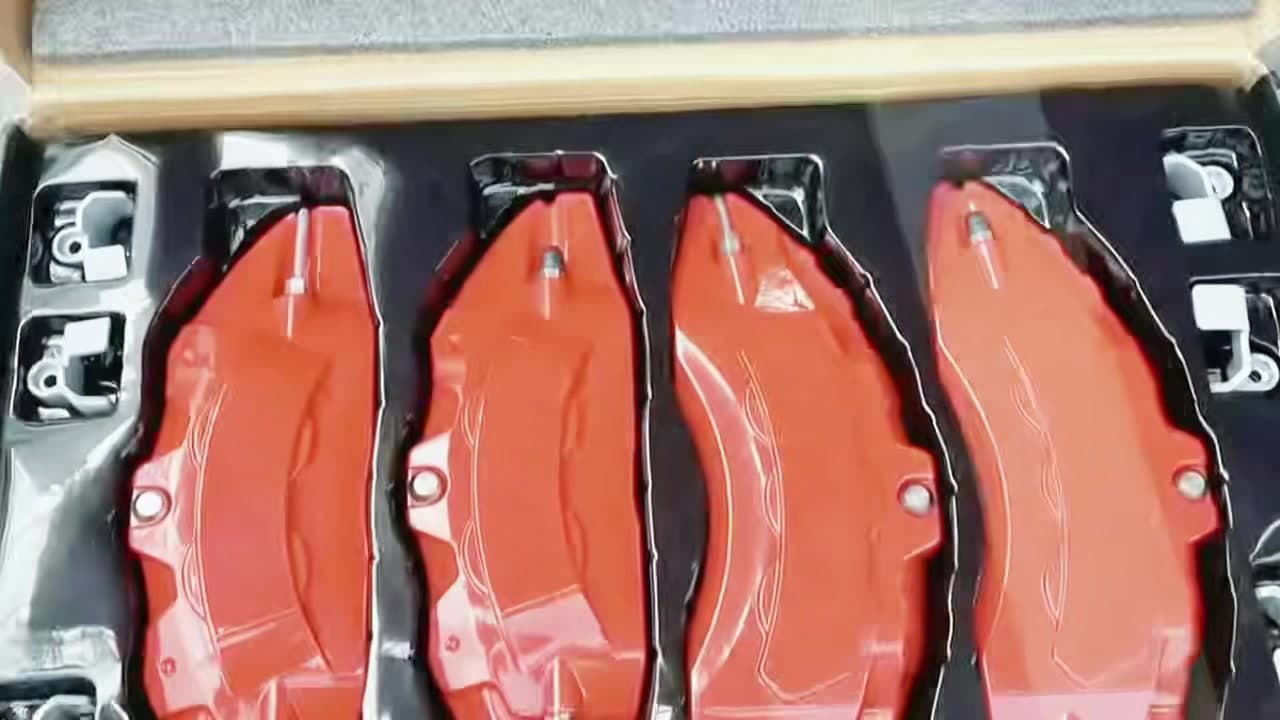

Finished red decorative brake caliper covers arranged in packaging
Packed red decorative brake caliper cover set with accompanying components

More real parts

Selected real parts manufactured by HSX

Selected aluminum die-cast parts supplied by HSX across different OEM projects.

Optical module aluminum die-cast housing manufactured by HSX02

Enclosures & Housings

Optical Module Housing

HSX Supply ScopeAluminum die-cast optical module housing.
Communication equipment aluminum die-cast housing manufactured by HSX03

Enclosures & Housings

Communication Equipment Housing

HSX Supply ScopeAluminum die-cast communication equipment housing.
Stage light aluminum die-cast housing manufactured by HSX04

Lighting Housings

Stage Light Housing

HSX Supply ScopeAluminum die-cast stage light housing.

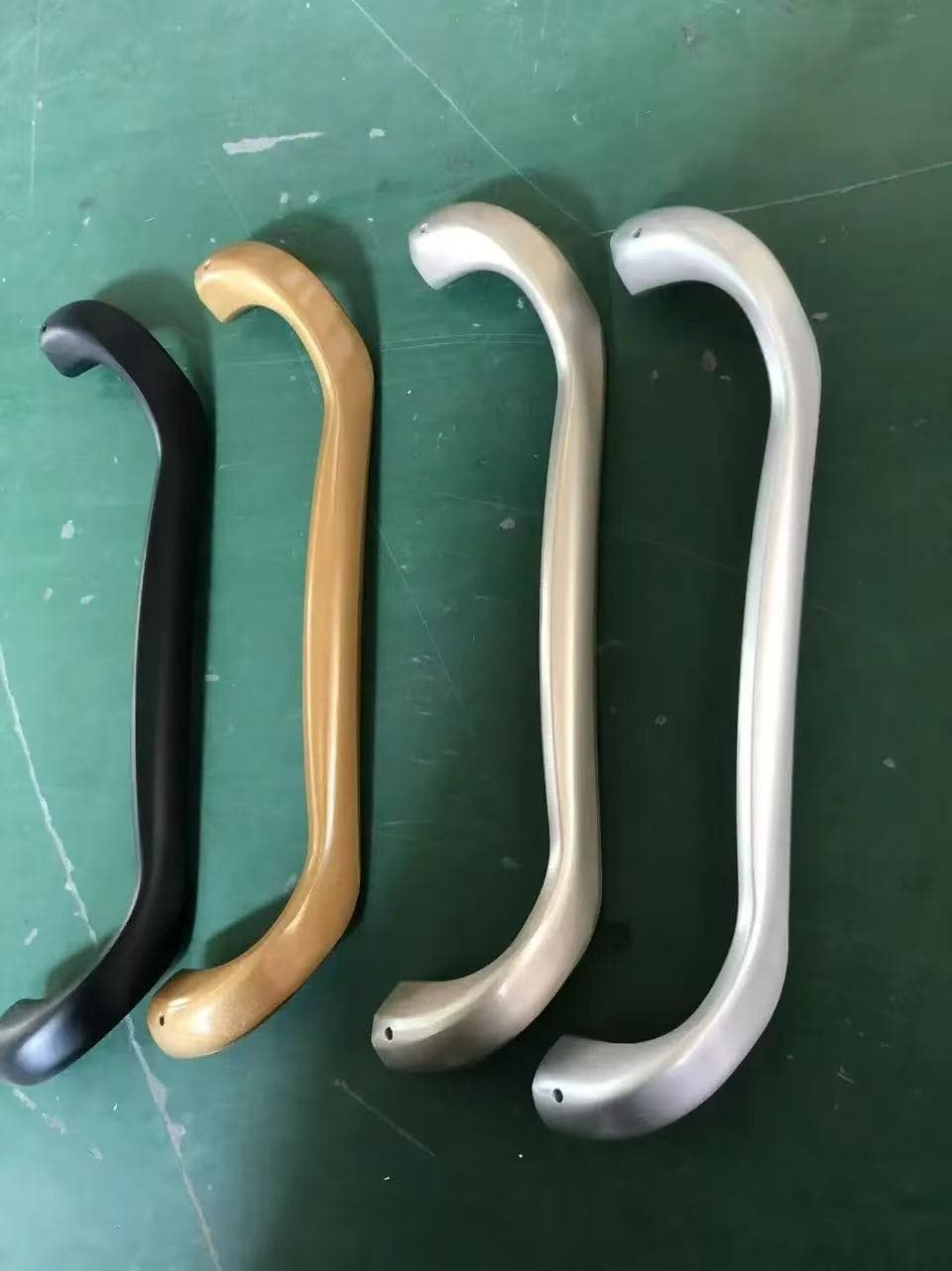

Sliding door handle aluminum die-cast parts manufactured by HSX05

Hardware & Mechanical Parts

Sliding Door Handle

HSX Supply ScopeAluminum die-cast sliding door handle parts.
Aluminum die-cast machinery parts manufactured by HSX06

Hardware & Mechanical Parts

Machinery Part

HSX Supply ScopeAluminum die-cast machinery parts.

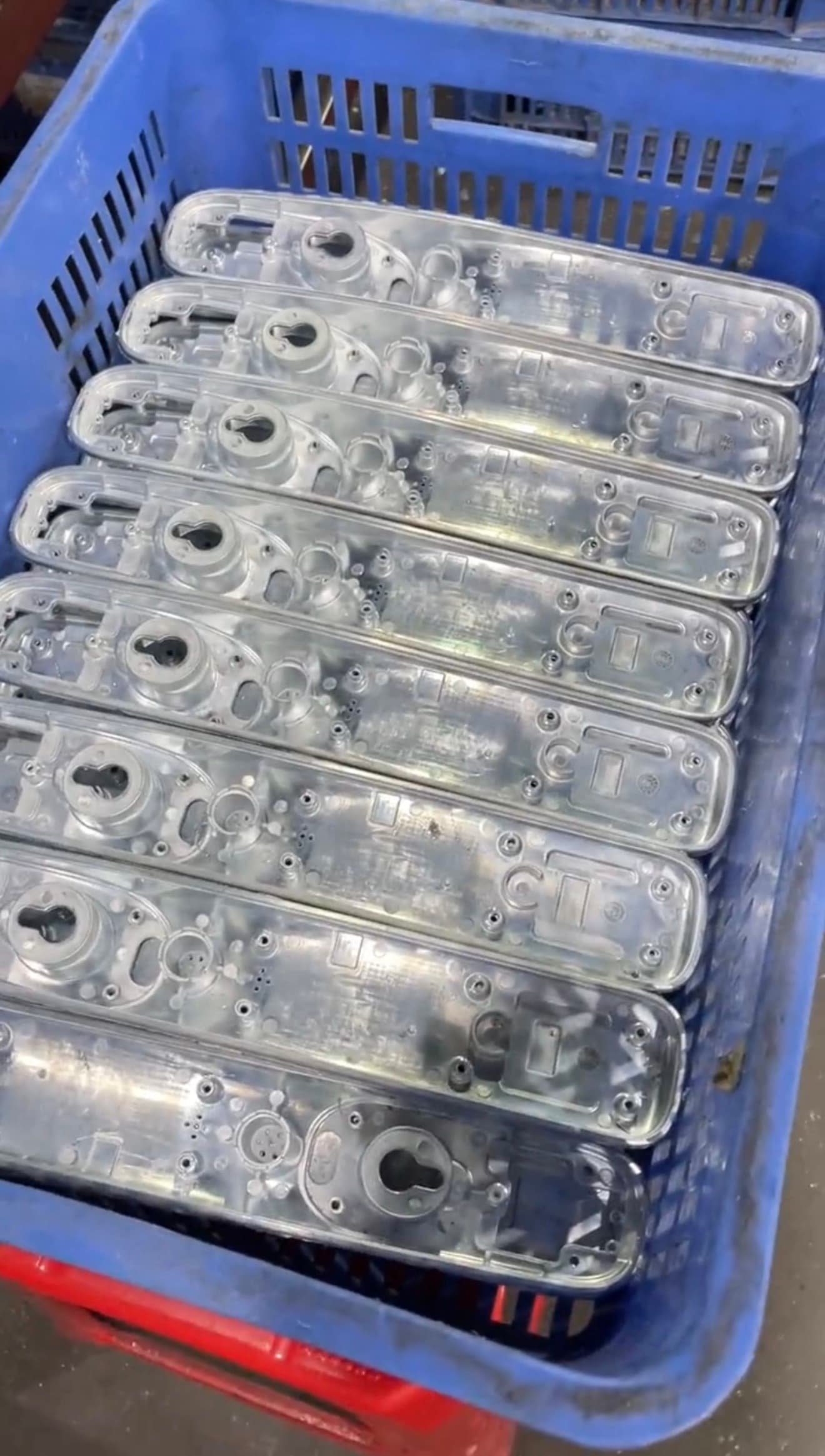

Smart lock aluminum die-cast blank manufactured by HSX07

Enclosures & Housings

Smart Lock Die-Cast Blank

HSX Supply ScopeSmart lock die-cast blank.

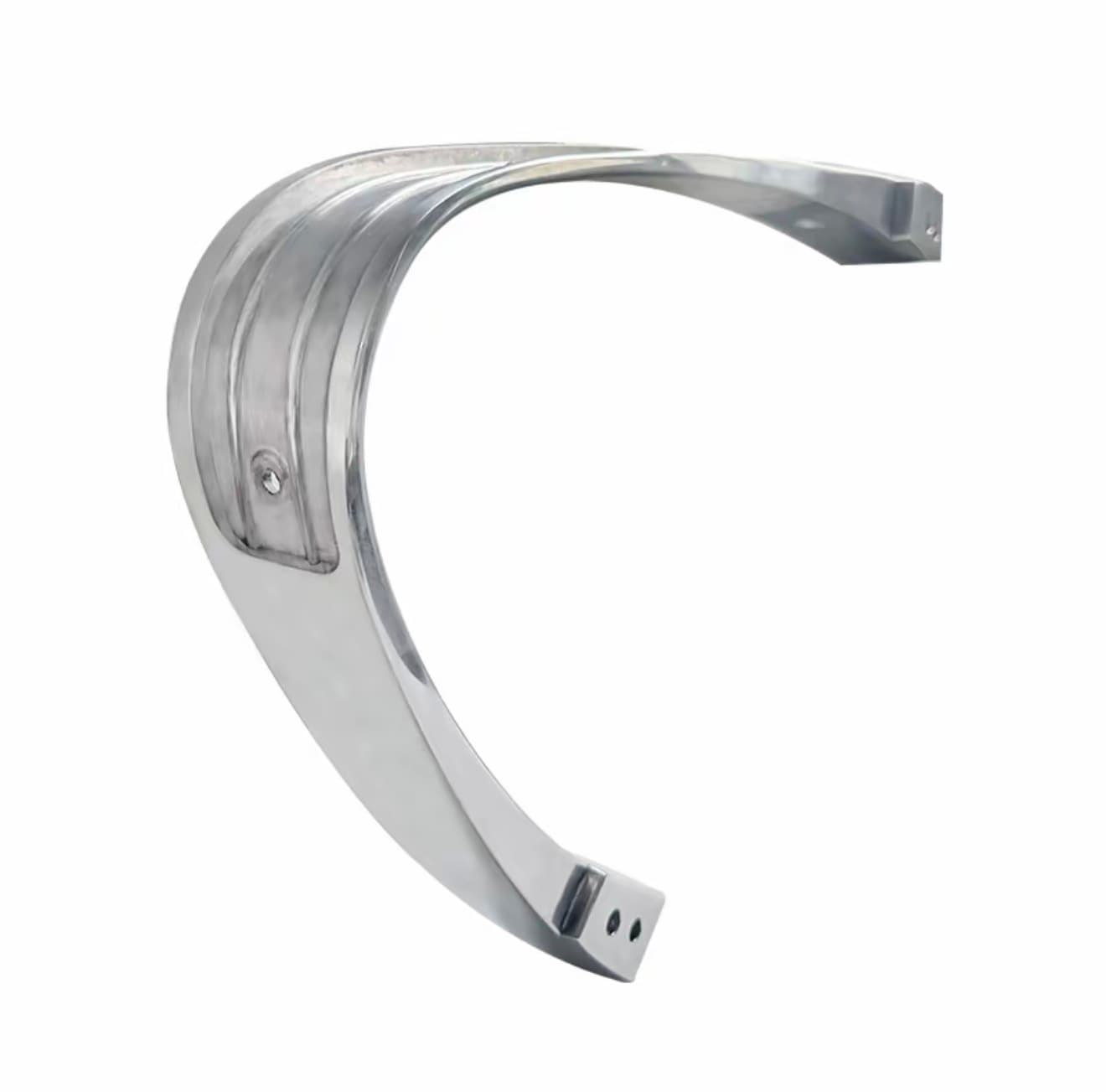

Chair armrest aluminum die-cast part manufactured by HSX08

Hardware & Mechanical Parts

Chair Armrest Die-Cast Part

HSX Supply ScopeAluminum die-cast chair armrest part.

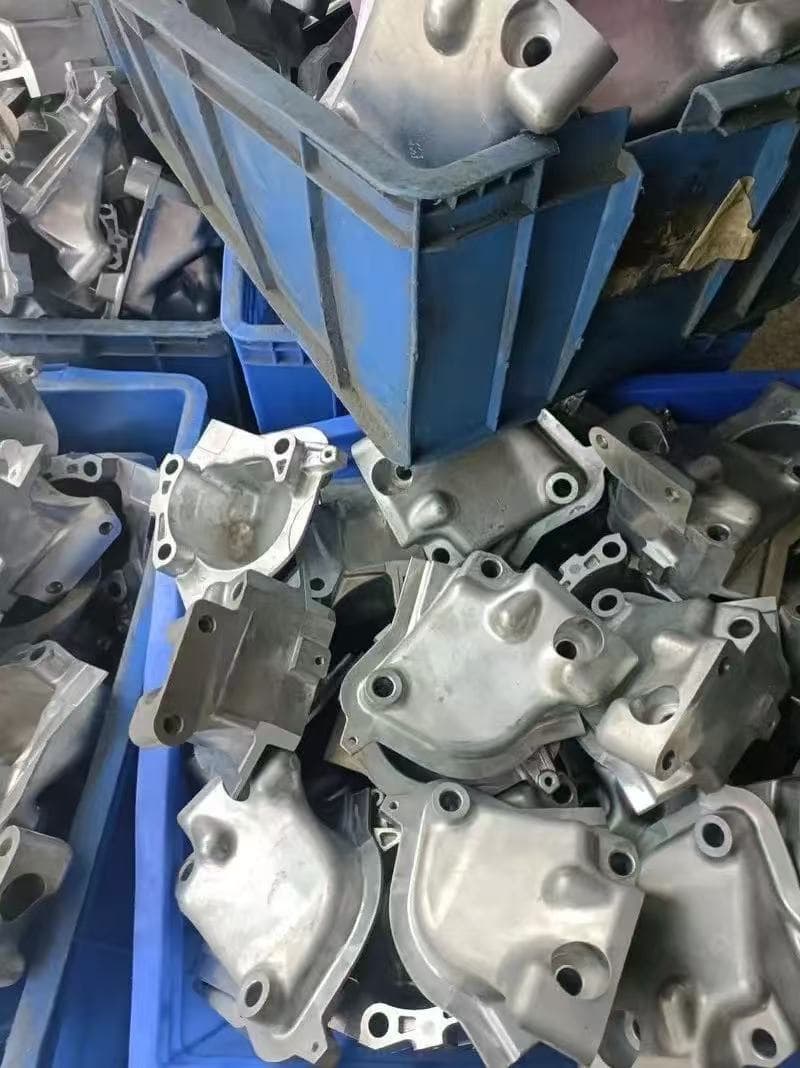

Batch aluminum die-cast parts manufactured by HSX before finishing09

Other Custom Parts

Batch Aluminum Die-Cast Parts

HSX Supply ScopeBatch of aluminum die-cast parts before finishing.
