CUSTOM INDUSTRIAL STRUCTURES
Custom Aluminum Die-Cast Brackets & Mechanical Parts
HSX manufactures drawing-defined aluminum brackets, supports, bases and mechanical interface parts for suitable OEM assemblies. Real production references establish relevant experience, while the buyer's own geometry, load path, mating parts and acceptance criteria determine the route for every new project.
A Custom Aluminum Die Casting Project

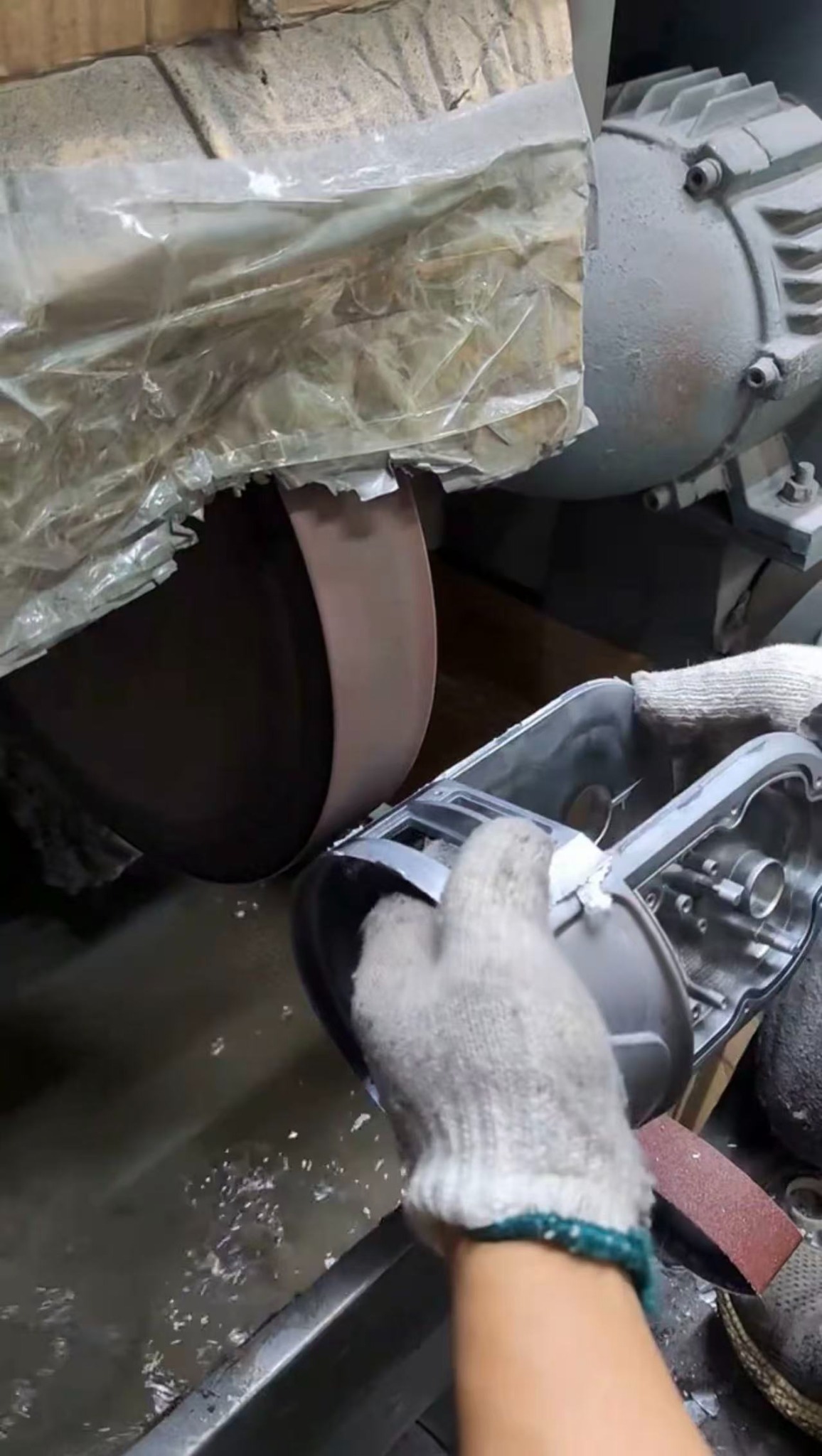

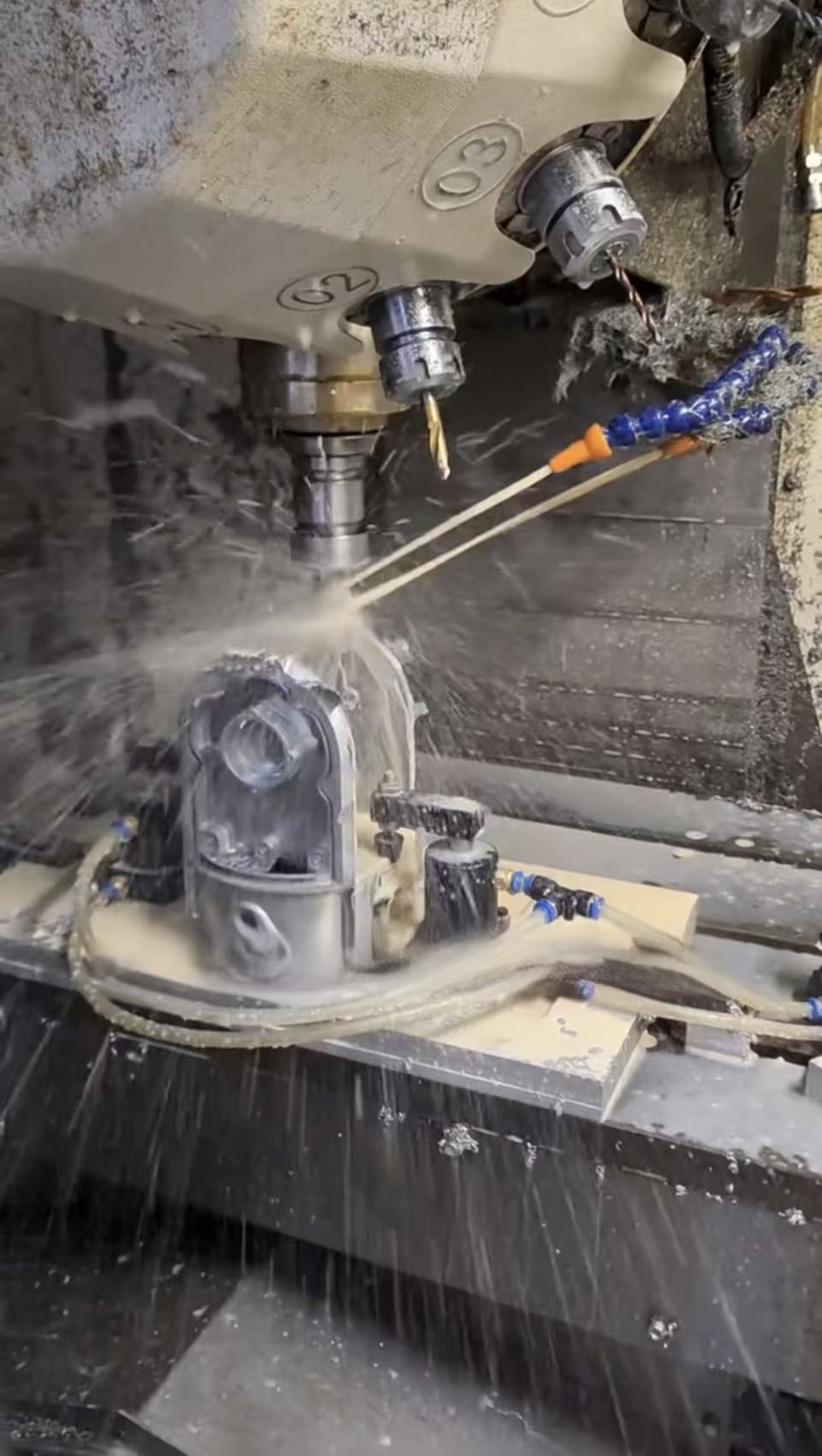

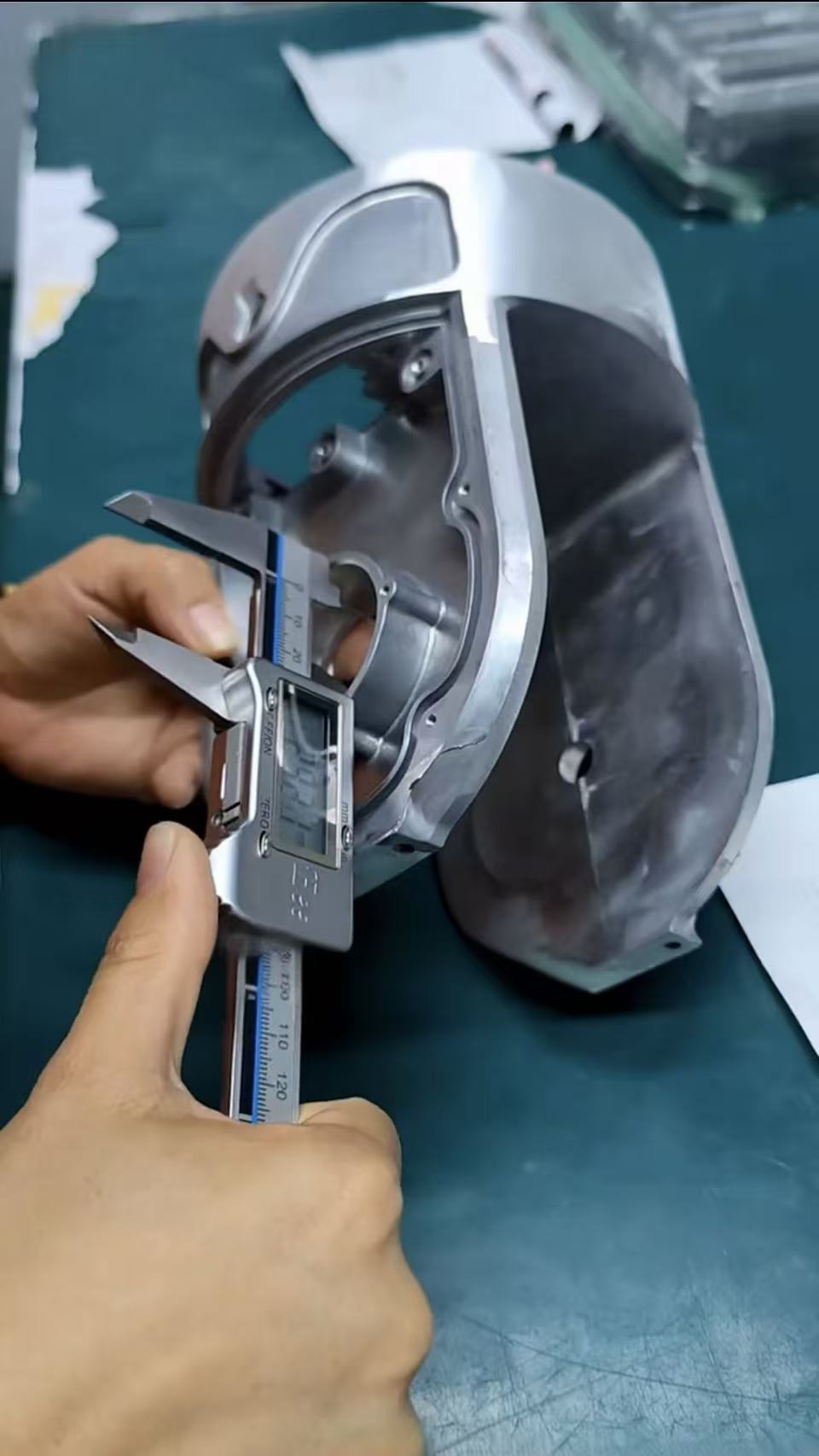

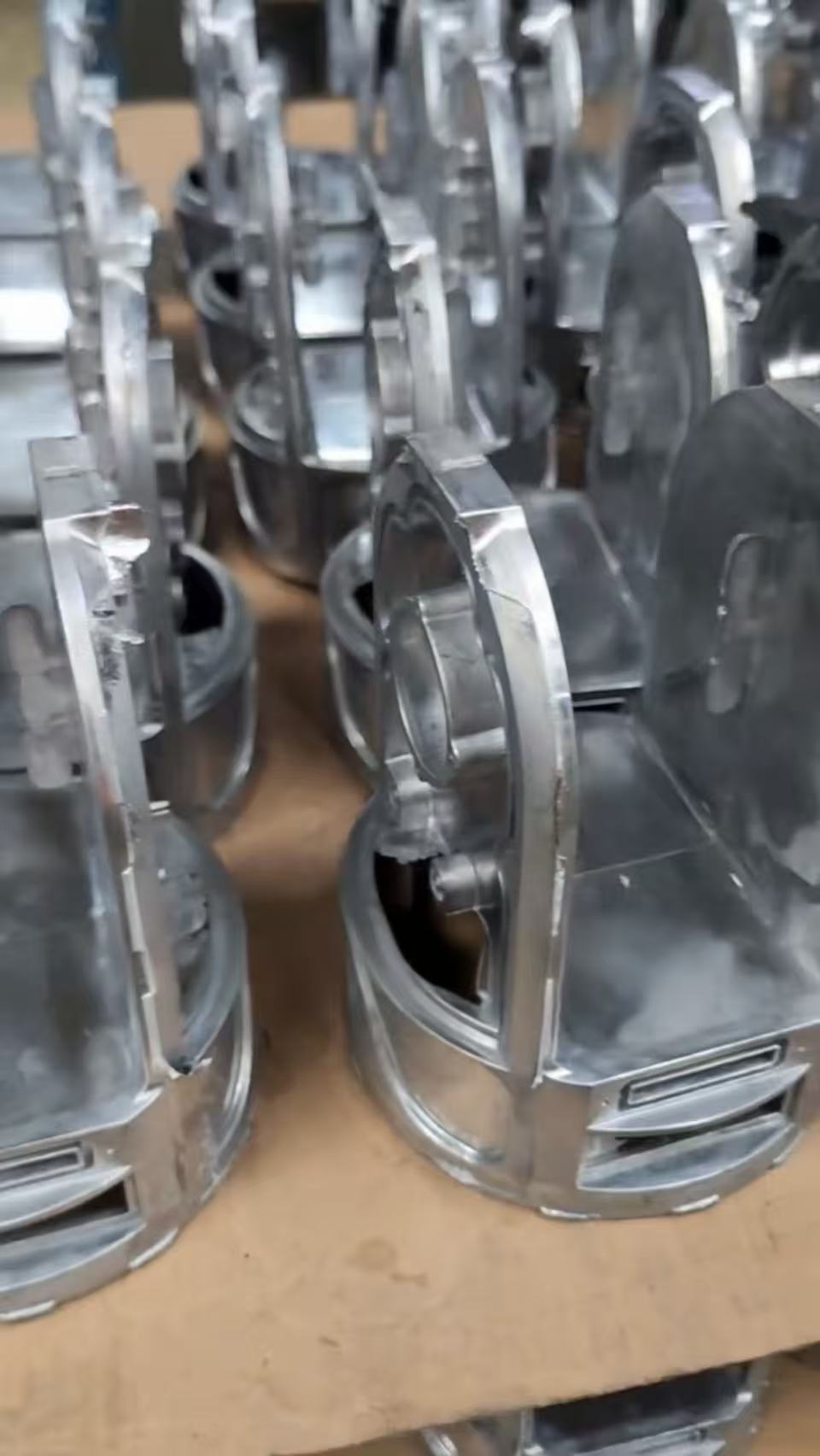

These photos show a custom aluminum die-cast structural component at several stages: as-cast, surface polishing, CNC machining, dimensional inspection and different delivery conditions. The required operations vary by project.
The Delivery Condition You Specify

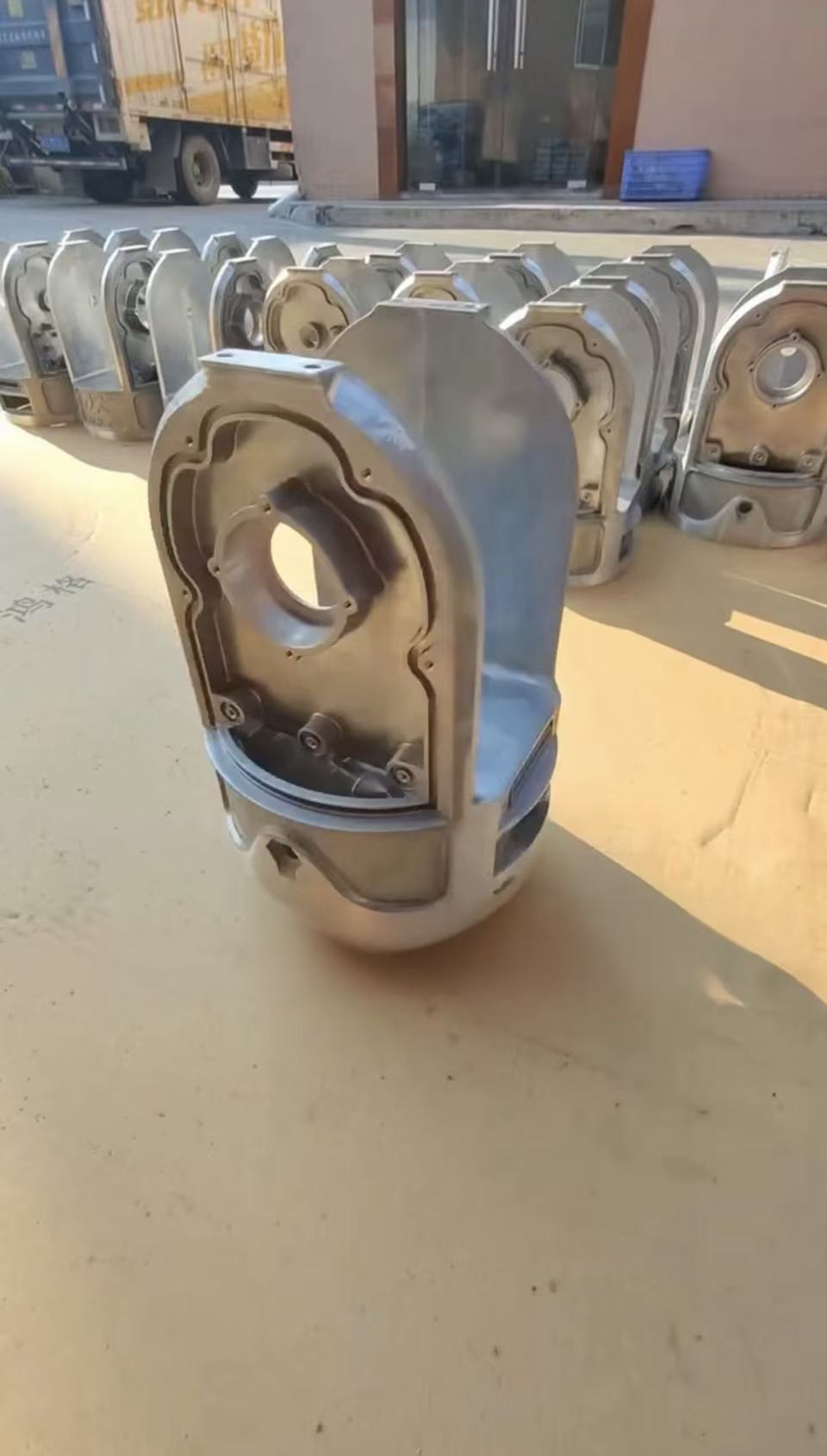

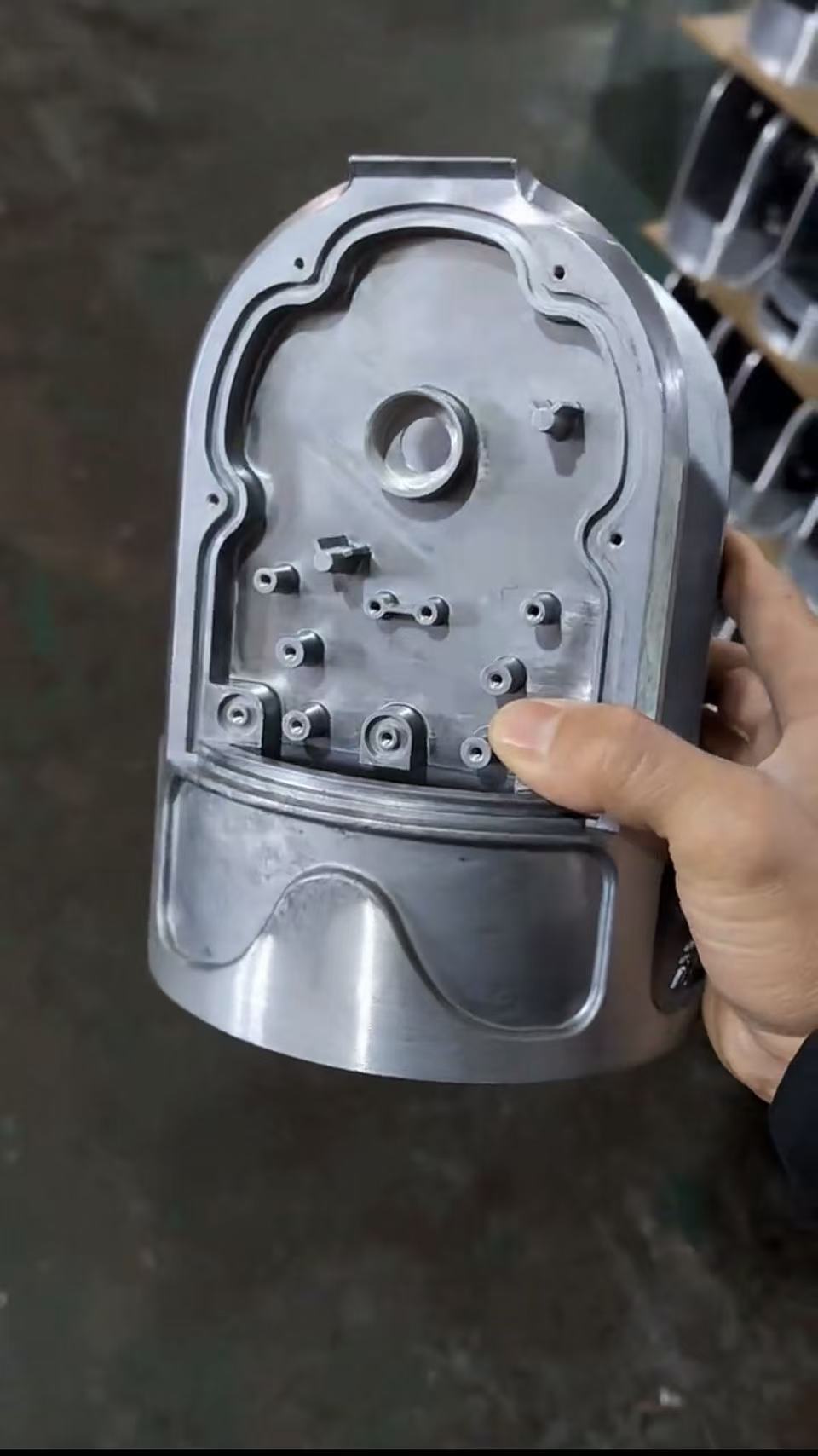

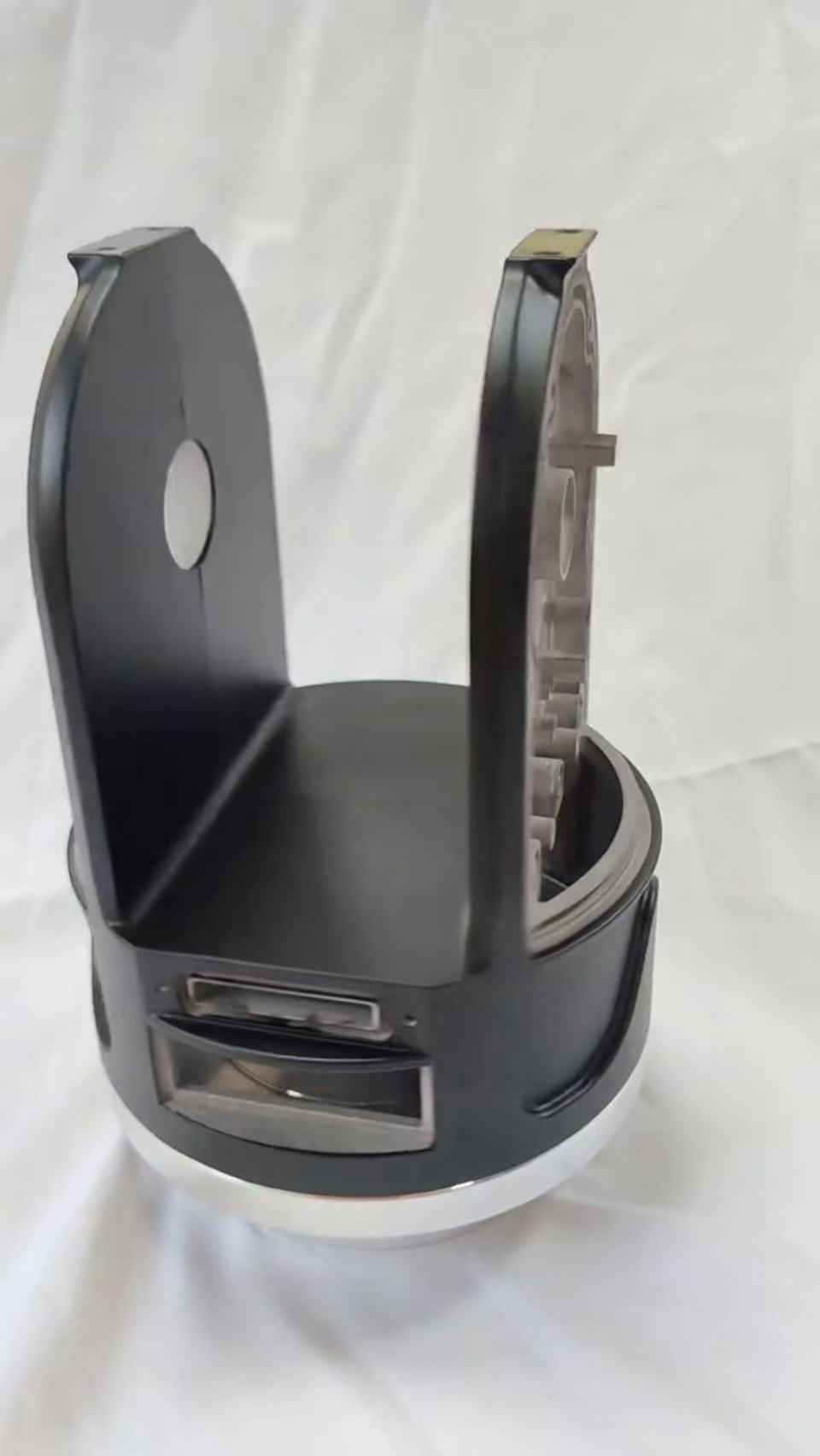

A partially processed component can be the final supplied part when that is what the customer specifies. If the order calls for a finished appearance, we review the relevant finishing requirements before production.
Send your 3D model, 2D drawing or sample, and identify the dimensions, assembly interfaces, surfaces and delivery condition that matter to you. We will review feasibility and confirm the proposed manufacturing scope, inspection points, quantity and lead time in the quotation.
Suitable Mechanical Part Structures
Potential projects include mounting brackets, structural supports, bases, handles, frames and interface components with cast ribs, bosses, recessed channels, mounting holes, threaded features and defined contact surfaces. Application suitability must be reviewed from the actual part rather than inferred from a photograph.
What the Buyer Should Provide
Provide a controlled drawing revision, 3D model or physical sample, application context, load path, datums, mating geometry, critical dimensions, functional and cosmetic surfaces, fastener details, finish, quantity, inspection requirements and packing needs. Mark any safety-related or regulated responsibility explicitly. Photos are useful for initial discussion only, not as a basis for tooling or production. If usable drawings are unavailable, provide a physical sample and complete the technical confirmation before tooling or production.
Possible Production Sequence
The production route is agreed from the drawing and may include mold design, aluminum die casting, trimming, gate removal, deburring, drilling, tapping, polishing, CNC machining, surface finishing, inspection and packing. The quotation confirms the required operations, inspection points and delivery condition for the project.
Risk Review and Supply Boundary
Load concentration, abrupt wall changes, rib and boss junctions, hole position, tool access, machining allowance, coating thickness and assembly stack-up are reviewed against the controlled input. HSX supports custom components, not complete machines, unverified load ratings or parts without sufficient project information.
MOQ and initial mold trial
The minimum production run is 300 die-casting shots. The initial mold trial is a 50-piece batch for sample review and confirmation. Tooling is quoted separately from the part price, with the included machining, finishing and packing scope clearly identified. Hole direction, locating faces and fixture setups can affect the part price more than part weight alone. Compare quotations using the same drawing, machining scope and delivery condition.
Small-batch lead time
